SUBARU Bell 412EPX
Reliable in the Extreme
Up next: MAIN FEATURES
For more than 85 years, we’ve raised our eyes to the sky, imagined the impossible, and worked resolutely to unlock the potential of flight and where it can take us.
Up next: timeline
For more than 85 years, we’ve been raising our eyes to the sky, imagining the impossible and working resolutely to unlock the potential of flight.
Subaru Bell 412EPX
Introduction
Bell Aircraft is founded
Timeline
1935
Bell Model 47 is certified
1946
Bell X-1 breaks the sound barrier
1947
Tiltrotor technology
1970s
Bell 206
1962
Bell UH-1 “Huey”
1952
Bell V-280
2018
Bell 429
2009
Bell 407
1990s
Up next: features
Bell 412RPX
Now
Main Features At a Glance
IMPROVED AIRCRAFT PERFORMANCE
The SUBARU BELL 412EPX provides more capability while maintaining its reputation of reliability for operators. The 412EPX benefits from a more robust main rotor gearbox, dry run capability, and increased internal maximum gross weight. Combined with an upgraded external gross weight, the 412EPX allows aviators to achieve better operational efficiency.
Transmission Upgrade
The 412EPX features a certified 30-mins run-dry transmission with additional hover capability, improved lubricant containment, and higher mast assembly durability built with laser peening manufacturing technology. Just one of the many upgrades featured on the 412EPX.
State-Of-The-Art Avionics
The 2nd Generation Bell BasiX-Pro™ integrated glass cockpit system has integrated performance calculations for access to critical flight parameters features at your fingertips. This system is complete with 4 large-screen, high resolution multi-function displays that provide EFIS, EICAS, and systems display along with full screen video. The aircraft is IFR capable for single-pilot navigation and comes with Bell’s patented Power Situation Indicator (PSI) presentation which helps to reduce pilot workload.
Pratt & Whitney PT6T-9 Twin PAC® Engines
These electronically-controlled engines contribute to a 15% increase in hot day take-off power as well as improved HOGE, CAT-A, and PC-2e performance. With a 30-second and 2-minute OEI rating structure with automatic limiting and OEI training mode, these engines will help elevate your experience.
Safety Design & Structural Upgrade
Safety continues to be Bell’s top priority. With a host of safety features like chip detection, debris collection, rollover bulkheads, and energy-attenuating pilot seats, we offer the protection needed for you and your crew.
Up next: Vibration Monitoring System
BHVMS Vibration Monitoring System
Bell 525 is the first rotorcraft to incorporate a touchscreen avionics interface in the cockpit.
All-Digital Aircraft
The Customer Advisory Panel and the IVHM Focus Group, provided invaluable input during the design process to achieve the aircraft’s operational requirements.
Designed with the Industry
The Bell 525 IVHM utilizes 25 sensors located throughout the aircraft to calculate over 3,400 condition indicators, such as vibration parameters providing real-time indication of the aircraft’s health.
IVHM is HUMS Upgraded
Multiple integrated systems feeds vibration and in-flight data to the on-board IVHM platform. One platform, one data bus, one source.
Integrated Avionics, Vibration and Flight Data
Multiple streams of data, via an intuitive interface, are downloaded at one time, from one single source, when the aircraft is on the ground.
Single Point Download
MissionLink data analysis allows early identification of deteriorating components, turning AOG events into proactive, preventive maintenance.
Monitor Trends
VHM advisories information is ‘decoded’ to plain language for direct troubleshooting. The Integrated Electronic Technical Manual prompts a faster problem identification, dramatically reducing downtime.
Exceedance Monitoring
The Bell patented Tail Rotor Hub Vibration Monitoring sensor allows direct monitoring of the tail rotor controls.
Monitors Tail Rotor Control
Color coded priority advisories, for easy identification, and in-flight tracking provides real-time powertrain components status.
Real Time HUMS
Up next: SETTING NEW STANDARDS
The BHVMS assists in current vibration related maintenance functions and improves aircraft serviceability and maintainability between regularly scheduled inspections.
The Bell Helicopter Vibration Monitor System
Setting New Standards
Dependability
Multi-Role
Performance
Cost-Effectiveness
A Time-tested and Reliable Solution
The Bell 412 has accumulated more than 6.5 million total flight hours with more than 1,110 current active aircraft in 70+ countries. Building on the legacy of the reliable Bell 412, with the SUBARU BELL 412EPX you can spend up to 150% less time on aircraft maintenance per flight hour than our competition*. The 412 has always had your back, and the 412EPX is no exception.
Since its inception, the Bell 412 has been a reliable partner for customers operating a variety of missions. The SUBARU BELL 412EPX offers quick-change interiors enabling operators to easily transform their cabin to accommodate multiple missions. This tremendous flexibility will help you meet your ever-changing demands.
The Next Generation Workhorse
The SUBARU BELL 412EPX was built to help you achieve your mission. With an improved HOGE enabling the aircraft to operate effectively at high altitudes and a powerful external gross weight of 13,000 lbs, regardless of your mission, the 412EPX is here to help you go above and beyond.
Proven Platofrm, Proven Performance
The cost of operating your aircraft is always an important consideration. The SUBARU BELL 412EPX is one of the most cost-effective aircraft in today’s medium-twin product class. A low direct operating cost and low direct maintenance cost result in an overall low cost of ownership. The 412EPX is an economic choice to execute your mission.
Superior Performance With Comeptitive Costs
Up next: Missions
*Based on Conklin & De Decker Report 2021 Utilization: 400 hr/year
Mission Performance

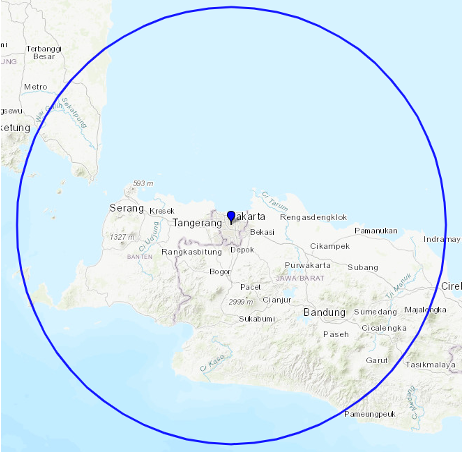

• 2 Pilots + 13 Pax • 4,000 ft., ISA+20 • 20 Minute Reserve
Assumptions
101 NM
Mission Range (Round trip):
Location
Jakarta, Indonesia
Kits and Weights
Configurations
• Speeds up to 155 KTS get you to your mission fast • Large cabin volume and doors for quick crew deployment • Fully adjustable seats and pedals make for a comfortable ride for all flight crew • Add-on’s that provide complete public safety package: moving maps in glass cockpit, multi-sensor camera imagery, searchlight, loud hailer, NVG capability
Fast, Agile and Quiet
Kits & Weights
Public Safety
• 1 Pilot + 2 Crew + Victim Pickup • 4000 ft., ISA • 20 Minute Reserve
179 NM
Mission Range (Round Trip):
Montreal, Canada
SAR
• 1 Pilot • 4000 ft., ISA • 20 Minute Reserve
172 NM
Max Payload
Berlin, Germany
2,267 lb
KITS AND WEIGHTS
6 – Passenger Configuration
Click to Zoom
Open Cabin Configuration
Configuration
General / Utility
• 1 Pilot • 4000 ft., ISA +20 • 20 Minute Reserve
183 NM
Los Angeles, United States
Mecaer MAG VVIP Interior
Corporate 4 – Passenger Mecaer Configuration
CARMEL SAND
SMOKE GRAY LIGHT GRAY
DARK BLUE LIGHT GRAY
BLACK BLACK
INTERIOR LEATHER OPTIONS
CARMEL
GRAY
NAVY
BLACK
UTILITY RUBBER CREW AREA
FLOORING OPTIONS
Bambi Bucket®
Corporate Kits & Weights
Select another mission
Corporate / VIP
Firefighting
Utility
Air Medical
Search and Rescue (SAR)
Missions
Up next: Specs
• 1 Pilot + 1 Crew + patient pickup • 4000 ft., ISA +20 • 20 Minute Reserve
170 NM
Perth, Australia
Passenger Configuration
CLICK FOR ADDITIONAL OPTIONS
Corporate 8
MAG VVIP Interior
CLICK TO LEARN MORE
Mecaer
CORPORATE KITS & WEIGHTS
MISSION PERFORMANCE
CORPORATE / VIP
5 – Passenger Configuration
4 – Passenger Configuration
Stryker M1 Stretcher System

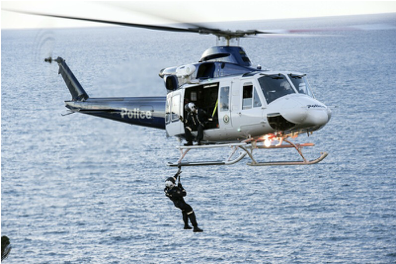

The Bell 412 is operated by more than 100 military and public safety customers across the globe. The SUBARU BELL 412EPX offers versatile configurations for a wide range of combat and support missions, including transporting up to 14 combat equipped troops. Backed by state-of-the-art technology and a robust airframe, the 412EPX is designed to deploy.
A Trusted Solution For Your War Fighters
High Density Configuration: 2 crew + 13 troops
High Density Configuration: 2 crew + 9 troops + 2 gunners
The Bell 412 has been a trusted parapublic solution for generations. With a large reconfigurable, contiguous cabin, excellent field of view, and widest cabin opening in its class, the SUBARU BELL 412EPX supports a higher level of mission execution. For SAR missions, a 600lb hoist capacity and integrated BLR Strake and Fast Fin ensure that no task is too tough for the 412EPX.
Multi-Mission Ready
4.13 Hrs
Mission Endurance:
The Bell 412 has always been a reputable workhorse. With the SUBARU BELL 412EPX offering 220 ft3 of cabin space, deck mounted cargo tie-down fittings, a 28ft3 baggage bay, and 5,000 lb cargo hook capacity, it provides more capability while maintaining its established reputation for utility missions.
Next Generation Performance

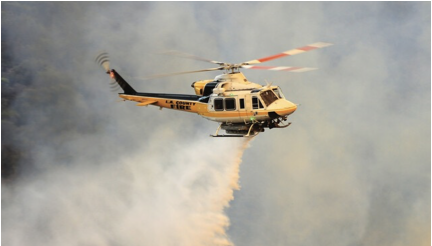

The SUBARU BELL 412EPX offers flexibility and capability to operators executing firefighting missions. The aircraft can be equipped with the Simplex Model 304 Fire Attack System which has a water capacity of 375 gallons. It’s superior hover performance and 5,000 lb. capacity fixed-beam suspension system enable the 412EPX to use a Bambi Bucket to effectively fight fires in any situation.
Elevate Your Firefighting Operations
The SUBARU BELL 412EPX is ready to support your medical evacuation missions. With dual 7’7” sliding doors allowing for easy ingress/egress of patients on both sides simultaneously, the 412 has already proven a trusty HEMS platform for approximately 50 operators. Offering multiple configurations with flexible seating capacities and arrangements, the 412EPX supports a variety of air medical operations.
Configurations As Unique As Your Patients
Simplex Model 304 Fire Attack System™
1,872 lb
Unused Payload: weight available for Bambi Bucket and water
*Extra weight available for additional medical equipment
Specifications
External Dimensions
Internal Dimensions
Performance Specs
Range Maps
Up next: Bell Training Academy
30 Min. Reserves
6000 ft., ISA+20
2 Crew + 16 Pax
100 nm / 185 km
Mission Radius
Stavanger, Norway
30 Min. Loiter Reserves
4,000 ft, ISA+20, MCP Cruise
2 Crew + 8 Pax
162 nm / 300 km
Tokyo, Japan
30 Minutes Reserves
2 Crew + 6 Pax
250 nm / 463 km
Milan, Italy
30 Minutes Loiter Reserves
20 Min. Mid-Mission
4,000 ft, ISA, MCP Cruise
SAR Configuration / 2 Pilots + 3 Crew
237 nm / 439 km
Mission Range:
Aberdeen, UK
Bell Training Academy
About the Courseware
Pilot Training
Maintenance Training
Up next: Support & Maintenance
High-definition video walls allow independent media manipulation Virtual components assembly and disassembly Replication of maintenance-pilot interactions Pilot training is conducted in a computerized classroom environment using interactive Garmin G5000H emulation
Utilizing Unity, a 3D, high-fidelity, interactive software, the Bell Training Academy has developed a suite of training courses that provides students with a deep understanding and an authentic representation of the aircraft’s components.
• • • •
Approximately 8 days of training 32 hours of ground academics 5 hours in Flight Training Device 7 hours of flight time All flight and Flight Training Device sessions include pre and post event briefings Comprehensive knowledge of the aircraft systems and components Complete knowledge of the current SUBARU BELL 412EPX flight manual Demonstrates and practice flight maneuvers Establish proficiency following FAA Practical Test Standards
• • • • • • • • •
Pilot Ground and Flight Procedures Course
3-week standard course Provides comprehensive coverage of the description, function, and maintenance procedures required for field maintenance of the 412EPX helicopter Students receive classroom and hands-on experience as well as aircraft type training to qualify engineers on the SUBARU BELL 412EPX aircraft
• • •
Field Maintenance Course
Takes approximately 3-weeks Teaches fundamental operations and skills necessary to maintain the SUBARU BELL 412EPX Bell requires that all regulatory technicians must take the written exams in English only without the assistance of an interpreter or digital translator
Integrated Avionics System Course
This ground training course provides pilots with comprehensive information about the aircraft’s systems, components, and a thorough review of its operational characteristics. A robust 4-week course, participants receive 56 hours of ground academics, 20 hours of Full Flight Simulator (FFS) time per pilot and pre/post FFS event briefs.
A world-class aircraft operates at its best when you have a well-trained flight crew. The Bell Training Academy offers courseware and instructional technologies that are second to none. Utilizing 3D, high-fidelity interactive software, training courses have been developed to enhance the learning experience for all attendees.
Sometimes maintenance needs to occur in the field. Educating technicians so they can perform all field service operations, including troubleshooting/replacing components, and isolating faults is essential. After completing the 4-week course, attendees will have the knowledge necessary to maintain the airworthiness of aircraft systems.
Maintaining the airworthiness of your aircraft’s avionics and flight control systems is critical. This 4-week course delivers the fundamental operations and skills necessary, in addition to service, routine maintenance, troubleshooting, inspection, component change, and wiring diagram interpretation skills.
About the BTA
Our state-of-the-art facility occupies 100,000 square feet of classroom, lab, and hangar space. We train pilots to master flight on our Bell-owned aircraft and certified simulators, and prepare technicians for any maintenance case on our production representative maintenance training devices.
Every aspect of flight
Support & Maintenance
Customer Advantage Program
GE CT7-2F1
Honeywell APU
Customer Support
Up next: Environmental responsibility
CAP goes into action as soon as you purchase your new aircraft. You’ll save on overall aircraft support, receive lower rates under warranty, and — most importantly — protect your aircraft’s residual value over time.
New Aircraft Coverage: Protection from Day One
[1] Fluids (oil, fuel etc.) are not covered [2] Per MSP standard business practices [3] MSP up to 10 hours. MSP Gold up to 20 hours (more than 10 hours requires approval and/or justification). Warranty up to 10 hours (more than 10 requires approval and/or justification).
[4] Labor will be covered by MSP when bulletins are incorporated in conjunction with other covered maintenance activities providing convenient access to the applicable engine area; otherwise, labor expenses will be the operator’s responsibility. [5] Applicable only to FOD events occurring January 1, 2015 or later. Does not apply to CFE738.
• Corrosion coverage • Full coverage. Tip-to-Tail coverage to include kits and customizing* • IVHM/HUMS services included • Dedicated technical, IVHM/HUMS and AOG support, 24/7/365
Exclusive Optional Coverage
*Consumables under $250 USD, lubricants/filters, interior items (seat covers, interior trims etc.) fuel, and batteries are not included. Pricing on kits and customization plans will be different.
Providing the best products and services to help you meet operational and ownership expectations, GE's TrueChoice Flight Hour delivers a range of options from all-inclusive care to more self-managed programs.
Designed specifically for your Honeywell Auxiliary Power Units (APUs), the Maintenance Service Plan (MSP) is an efficient and cost-effective program offering a practical alternative for managing future maintenance expenses.
Environmental Responsibility
Environmentally Aware
A Greener Aircraft
Textron and Bell Together for a Greener Future
Cooling and Heating Systems independent from main engines
Green Procedures
Uses recycled chemicals such as turbine and gearbox oils and brake fluid
Recycled Consumables
Corrosion inhibitors, such as Zinc-Nickel plating instead of cadmium, comply with European Union regulations
Green Compliance
Aircraft does not require refrigerant for heating & cooling and utilizes sustainable chemicals
Chemical Reduction
Completed 145 sustainability projects aimed at energy, waste, or water use reduction
Global Sustainability
Reduced our landfill disposal by almost 3,400,000 pounds (1,540 metric tonnes)
Waste Reduction
Approximately 1.7 million gallons of water savings
Water Conservation
Reduced greenhouse gas emissions by over 5,500 metric tonnes
Energy Reduction
Recycled more than 27,600 metric tonnes of waste (53% recycling rate)
Recycling
Bell has two LEED Silver Certified Facilities
LEED Certification
LOWER IN CO EMISSIONS COMPARED TO S-92
That’s the equivalent of 10,000 additional trees to offset the CO emissions of one aircraft.
21%
LOWER IN FUEL CONSUMPTION COMPARED TO S-92
Represents a saving of 267,000 liters of fuel over one year, enough to fill up an Olympic size swimming pool over the lifecycle of one aircraft.
30%
WITH SUSTAINABLE AVIATION FUEL (SAF)
SAF is made from 100% renewable, sustainably sourced waste and residue materials and an 80% reduction of greenhouse gas emissions compared to petroleum-based jet fuel
COMPATIBLE
1. Per passenger-nautical mile. Bell 525: 0598 kg/Pax-NM, S-92: 0.756 kg/pax-NM 2. Calculations based on data provided by www.usda.gov and www.eea.europa.eu
1
2
Source: Textron 2020 Corporate Responsibility Report
